Understanding EMT Connectors: Zinc Die-Cast vs. Steel

Electrical Metallic Tubing (EMT) connectors are essential components in electrical installations, providing secure connections between EMT conduit and electrical boxes or other conduit systems. These connectors come in various materials, with zinc die-cast and steel being the most common. Understanding the differences between these materials can help in selecting the right connector for your specific application.

What Are EMT Connectors?

EMT connectors are fittings designed to join EMT conduit to electrical boxes, devices, or other conduit systems. They ensure a secure mechanical and electrical connection, maintaining the integrity of the conduit system. There are two primary types of EMT connectors:
1. Set-Screw Connectors: Utilize screws to clamp onto the EMT conduit, securing it to the electrical box or another conduit.
2. Compression Connectors: Use a compression nut and ring to secure the EMT conduit to the electrical box or another conduit, often providing a watertight or airtight seal.

Zinc Die-Cast vs. Steel: Material Comparison

Here is a comparison between Zinc Die-Cast and Steel EMT connectors in terms of their key properties:

Advantages and Considerations

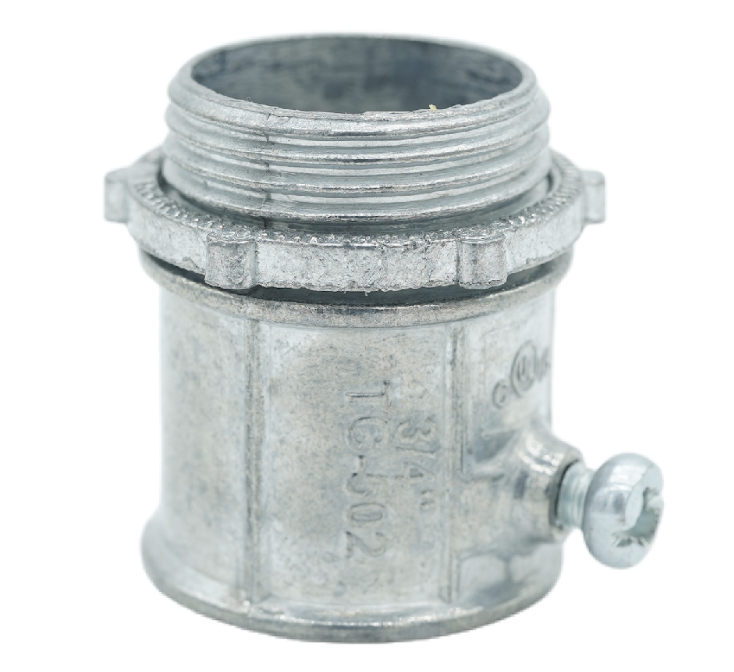

Zinc Die-Cast Connectors
Advantages:
- Corrosion Resistance: Excellent, especially in moist or corrosive environments.
- Lightweight: Easier to handle and install.
- Cost-Effective: Generally more affordable.
Considerations:
- Strength: Lower tensile and shear strength compared to steel.
- Durability: May not withstand heavy mechanical stress or impact as well as steel.

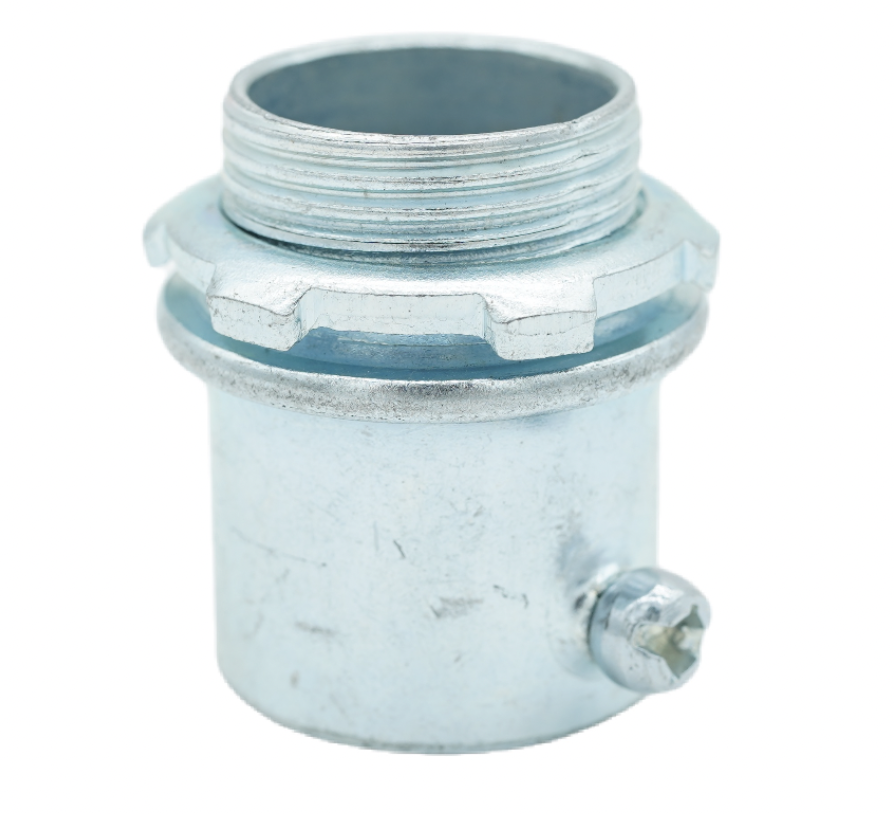

Steel Connectors
Advantages:
- Strength and Durability: Higher tensile and shear strength, suitable for heavy-duty applications.
- Impact Resistance: Better performance under mechanical stress.
Considerations:
- Weight: Heavier, which may increase handling and installation time.
- Cost: Generally more expensive than zinc die-cast connectors.

Application Recommendations

Zinc Die-Cast Connectors: Ideal for residential and light commercial applications where corrosion resistance and cost-effectiveness are priorities.
Steel Connectors: Suitable for industrial and heavy-duty applications requiring higher strength and durability.

Conclusion

Selecting the appropriate EMT connector material depends on the specific requirements of your electrical installation. Consider factors such as strength, corrosion resistance, weight, and cost to make an informed decision. Both zinc die-cast and steel connectors have their unique advantages, and understanding these can help ensure the safety and efficiency of your electrical systems.
