What is Strut Channel?

Strut channel (sometimes called “channel framing” or “conduit support channel”) is a cold-formed metal profile shaped like a shallow “C” with in-turned lips. It’s a modular framing system used to mount, brace, support, and connect electrical and mechanical loads—cable trays, EMT/IMC conduit, pipes, HVAC equipment, lighting, and racking—without welding. Components assemble with channel nuts, bolts, and brackets, allowing rapid installation and easy reconfiguration.

Key Advantages

  • Modular & weld-free: Assemble with hand tools; alter or expand later.

  • High strength-to-weight: Cold-formed profiles with optimized geometry.

  • Huge accessory ecosystem: Nuts, brackets, clamps, and fittings cover most use cases.

  • Finish options for environments: From indoor dry areas to outdoor/industrial corrosion exposure.

  • Compatibility: Works with EMT/IMC/Rigid conduit and standard fasteners.

Common Profiles & Sizes

  • Standard depth: 41×41 mm (1-5/8″×1-5/8″) – the most universal.

  • Shallow depth: 41×21 mm (1-5/8″×13/16″) – lighter duty, low profile.

  • Other widths/depths: 21×21 mm, 41×62 mm (heavy duty), and specialty profiles.

  • Double / Back-to-Back: Two channels welded or riveted back-to-back for greater stiffness.

  • Wall thickness (typical): ~1.5–2.5 mm (≈14–12 ga). Heavier gauges available for higher loads.

Tip: For heavy cantilevers or long spans, consider back-to-back channel and/or heavier gauge, and check deflection limits for your application.

截屏2025-08-13 16.17.14.png

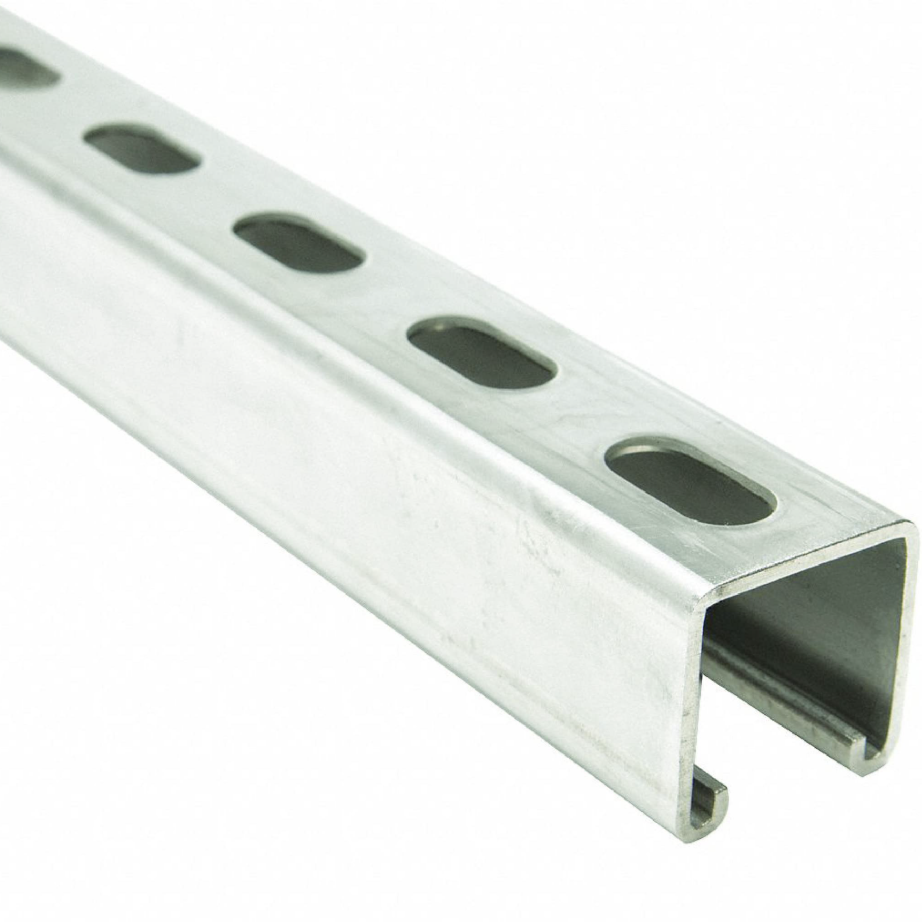

Strut channel cross-section 41×41 mm (BEST SELLER)
截屏2025-08-13 16.17.26.png

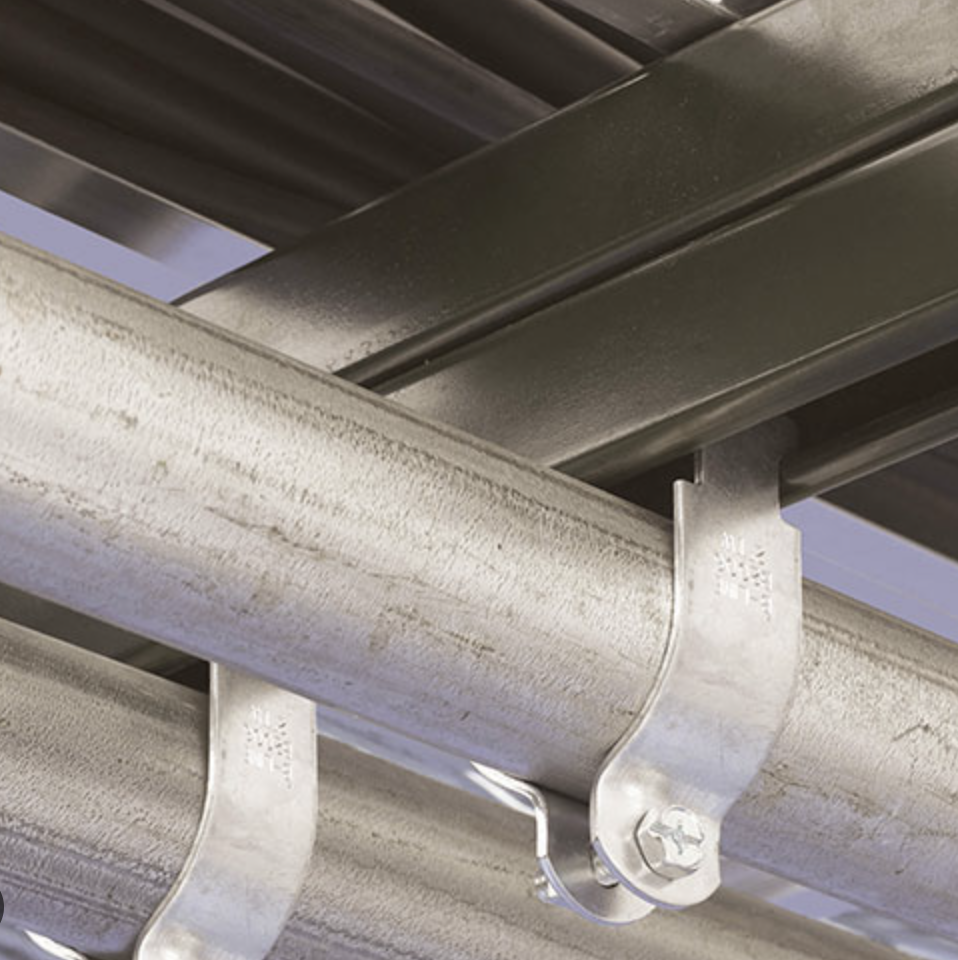

Galvanized steel pipe secured to overhead strut channel with metal clamp, used for electrical conduit or mechanical support installation
截屏2025-08-13 16.17.39.png

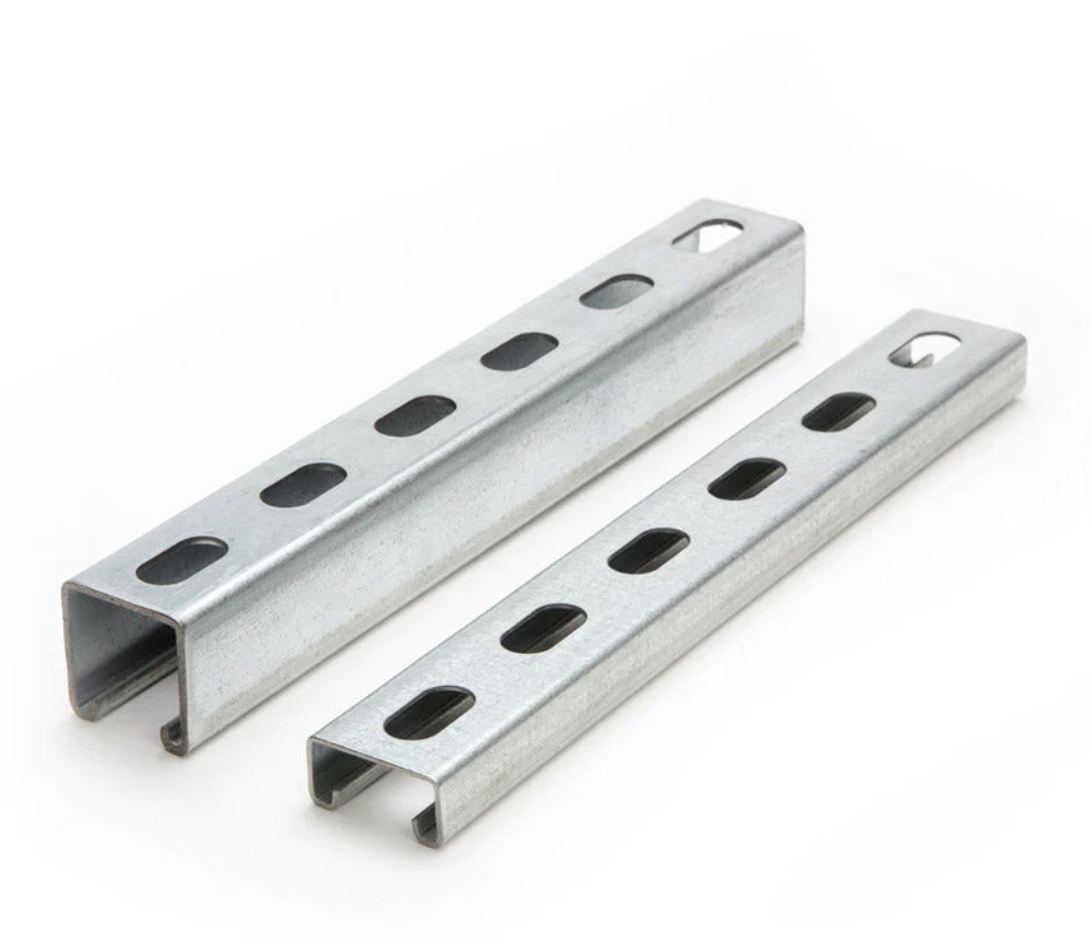

41mm x 41mm
41mm x 21mm
SLOTTED
截屏2025-08-13 16.18.47.png

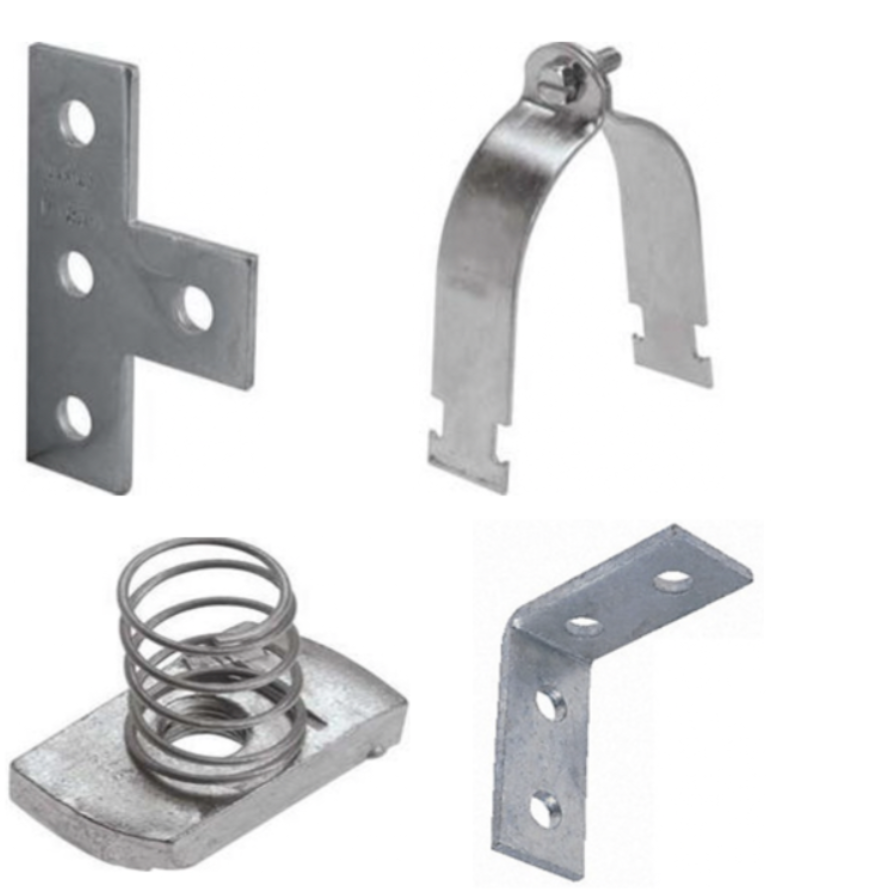

STRUT CHANNEL ACCESSORIES


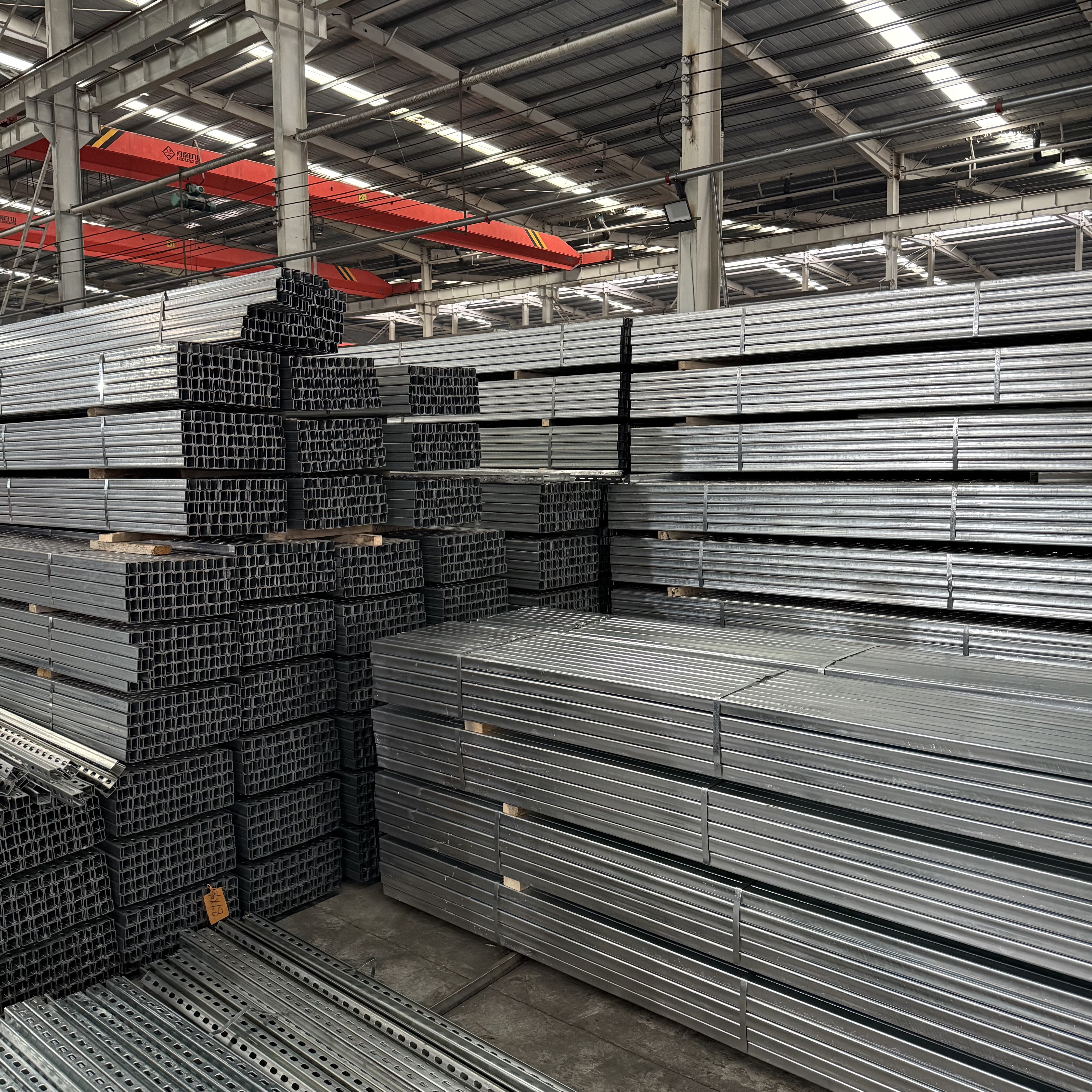

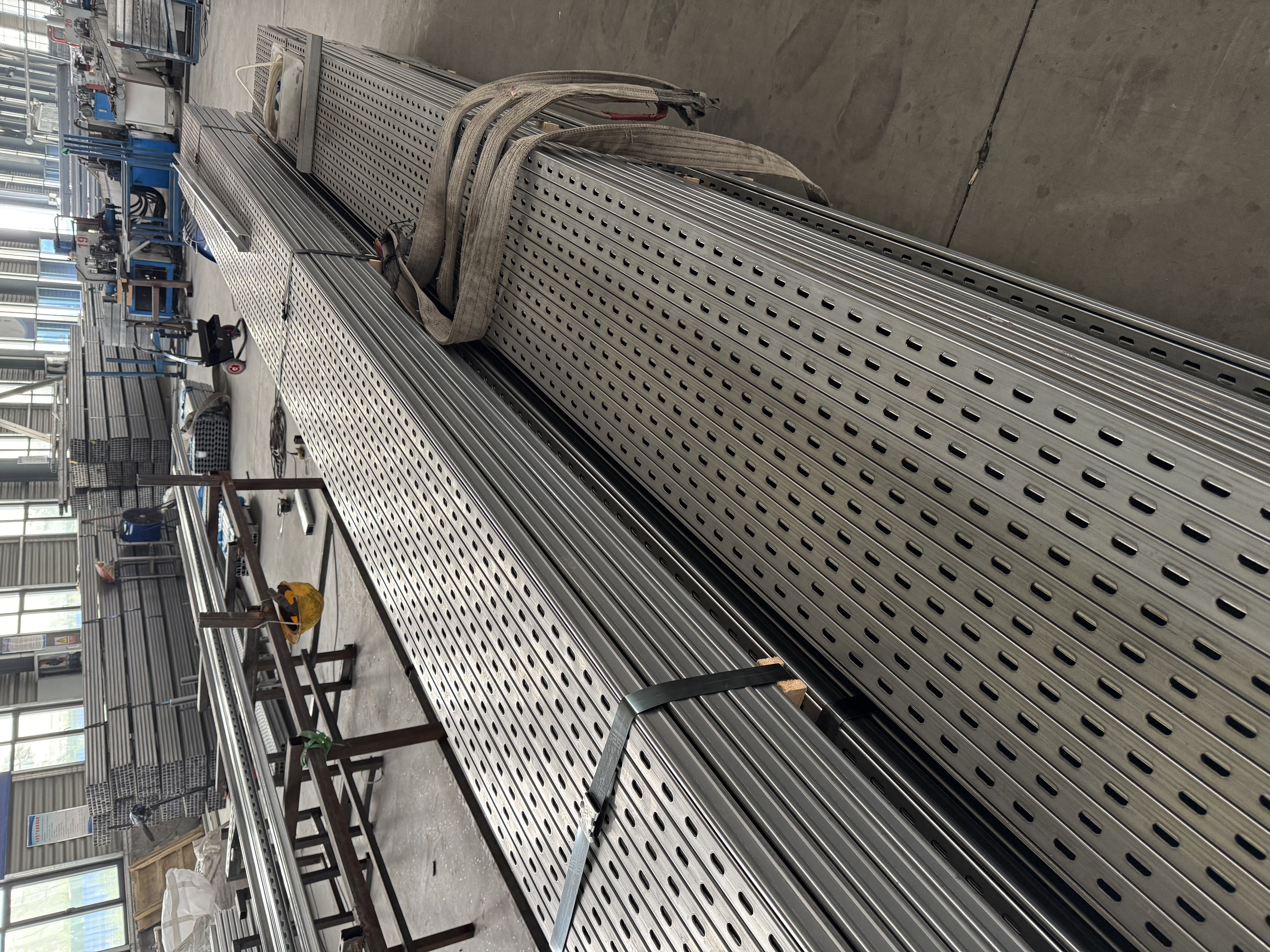

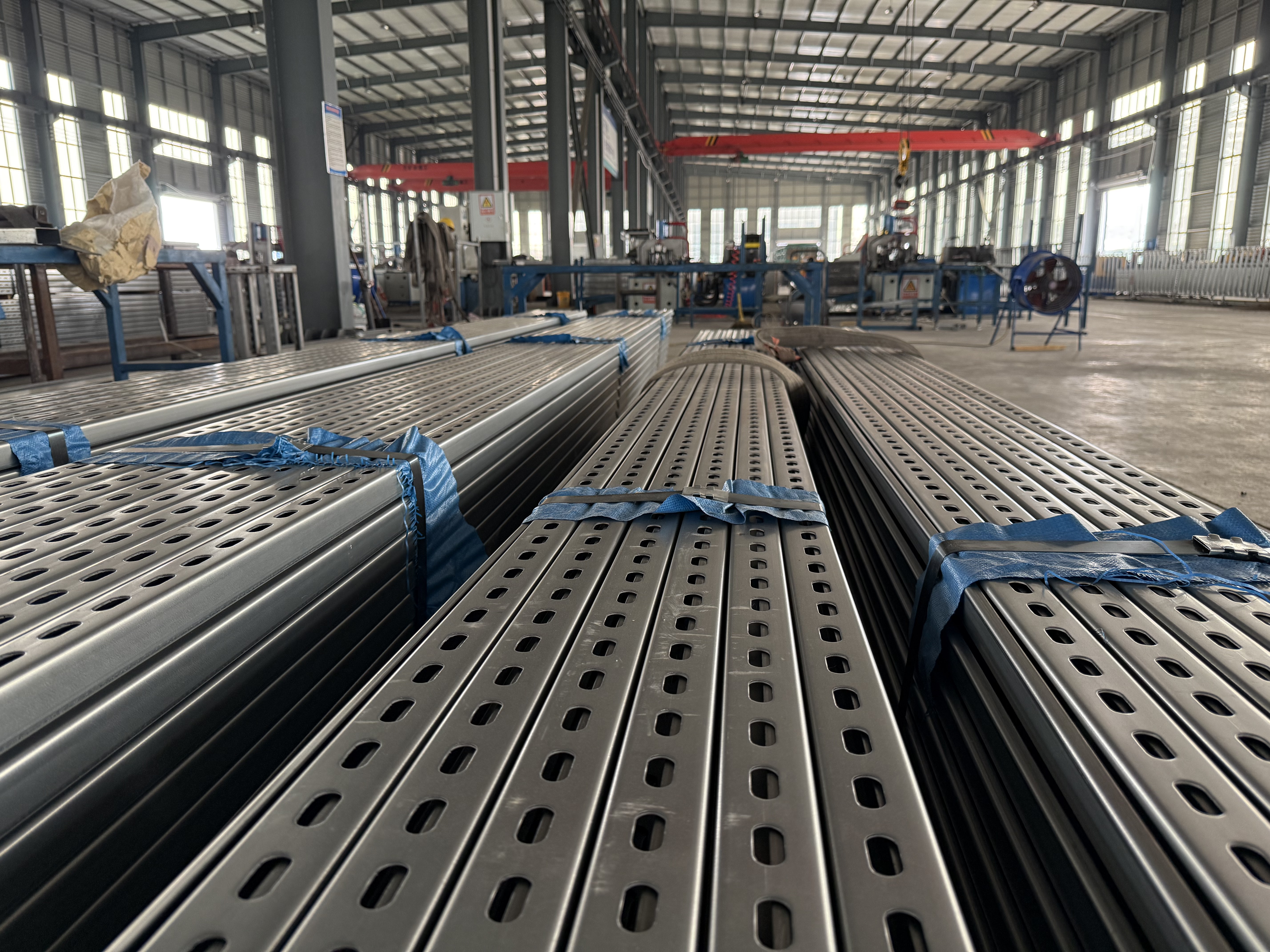

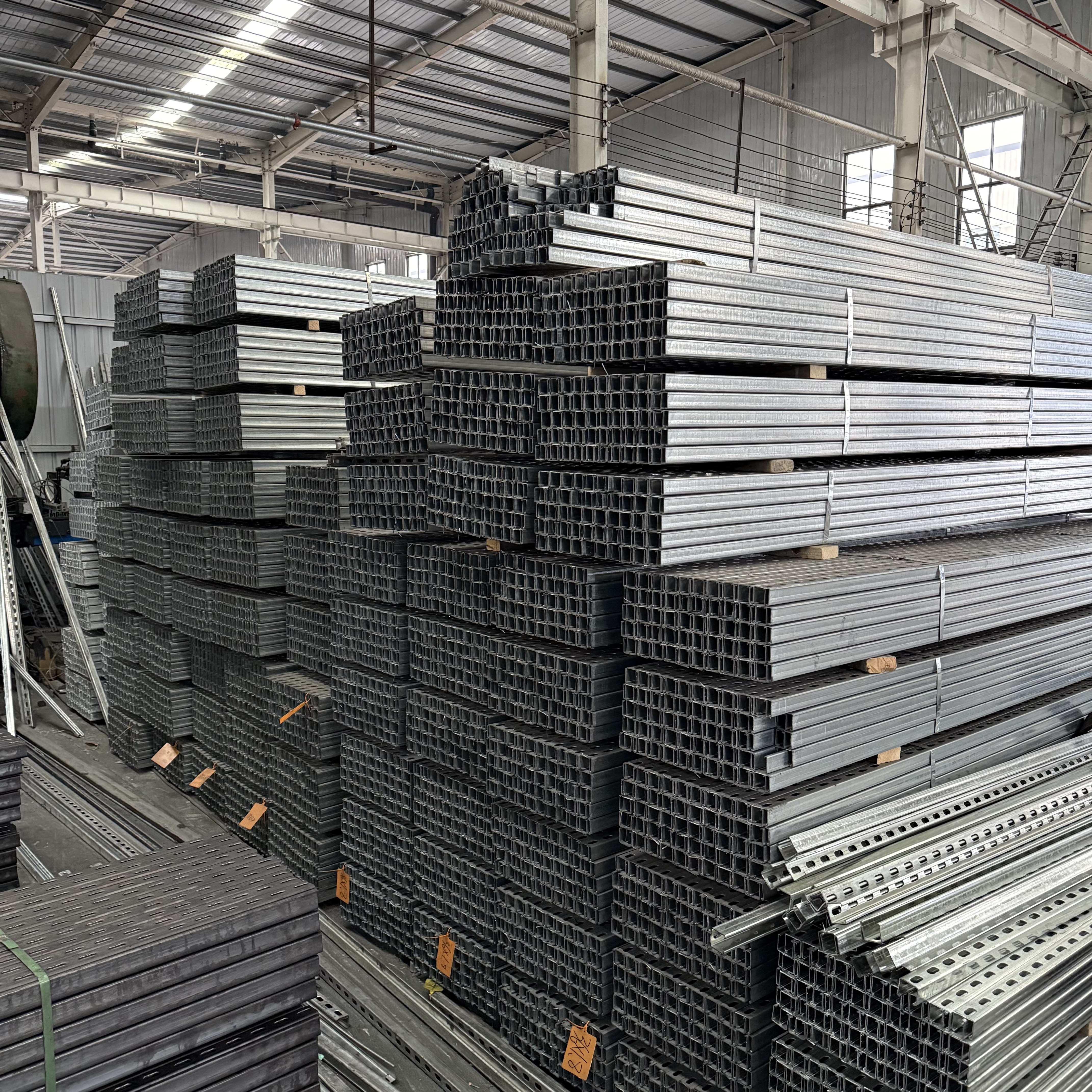

Hole/Slot Patterns

  • Plain (no holes): Maximum stiffness, drill where needed on site.

  • Long-slotted: Oblong slots along the length speed up alignment and bolt placement.

  • Round-hole / Mixed patterns: For precise bolt spacing, joining, or anchor points.

(See the pictures below for plain, long-slot, and round-hole examples.)

Materials & Finishes (Typical Options)

  • Carbon steel (most common)

    • Pre-galvanized (GI/Zinc-coated): Good indoor corrosion resistance.

    • Electro-galvanized (EG): Smooth finish for indoor/light duty.

    • Hot-dip galvanized (HDG): Thick zinc layer for outdoor/industrial environments.

    • Powder-coated: Aesthetic and extra barrier protection; custom colors possible.

  • Stainless steel 304/316: Superior corrosion resistance (marine/chemical).

  • Aluminum: Lightweight, good corrosion resistance, non-magnetic.

Corrosion planning: Match finish to environment (e.g., HDG/stainless for coastal/outdoor; EG/GI/powder coat for indoor).

Core Accessories & Fittings

  • Channel nuts: Spring nuts and long nuts with serrations for bite into the channel lips.

  • Bolts & washers: Metric/imperial; choose grade to match loading.

  • Brackets: L-angles, T-plates, gusseted angles, U-brackets, corner plates.

  • Couplers/Joiners: Inline sleeve couplers to extend channel length.

  • Base plates / Post bases: Wall, floor, or ceiling mounting.

  • Cantilever arms: Pre-fabricated arms for shelves, equipment, or pipe runs.

  • Pipe/Conduit supports: U-bolts, two-piece pipe clamps, cushioned clamps, clevis hangers.

  • End caps & closures: Safety and finish.

Typical Applications

  • Electrical: Trapeze hangers for EMT/IMC/Rigid conduit, cable trays, and junction box supports.

  • Mechanical/HVAC: Pipe racks, equipment stands, air-handler platforms, duct supports.

  • Industrial & Commercial: Racking, solar PV supports, signage frames, lab/IT cable management.

How to Assemble (Step-by-Step)

  1. Cut & Deburr: Cut channel to length; deburr edges for safety and fit.

  2. Position Channel Nuts: Compress and insert spring nuts; twist 90° to lock under the lips.

  3. Attach Fittings: Place brackets/arms; insert bolts with washers into nuts.

  4. Align & Tighten: Square assemblies; torque bolts to spec (avoid over-tightening that can crush lips).

  5. Anchor to Structure: Use appropriate anchors for concrete, steel, or wood; follow manufacturer/engineer specs.

  6. Load & Inspect: Place conduit/pipe/trays; check alignment/clearances; re-torque after initial load if needed.

Load & Deflection Basics (Quick Guidance)

  • Span vs. Load: Longer spans increase deflection; reduce spacing or increase section/gauge.

  • Support type: Simple span vs. cantilever require different checks.

  • Safety factors: Use appropriate factors and applicable codes; consult engineering tables for your specific profile, gauge, finish, and support condition.

  • Vibration & dynamic loads: Use cushioned clamps and bracing to control vibration.

Compatibility with Conduit

  • Works with EMT, IMC, and Rigid conduit using compatible clamps/hangers.

  • For EMT (thin-wall), cushioned clamps help reduce vibration and protect the coating.

Ordering Checklist (What Buyers Specify)

  • Profile & size (e.g., 41×41 mm standard or 41×21 mm shallow).

  • Wall thickness / gauge (e.g., 2.0 mm or 12/14 ga).

  • Pattern (plain, long-slot, round-hole).

  • Lengths (e.g., 3 m / 6 m) and quantity.

  • Material & finish (EG, GI, HDG, powder coat, SS304/316).

  • Accessories (nuts, bolts, brackets, couplers, clamps).

  • Packaging (bundles, end-caps, labeling) and certification needs.
