ALEX EMT/RGD CONDUIT BODIES-C TYPE

Copper Free Aluminum

ALX-EC

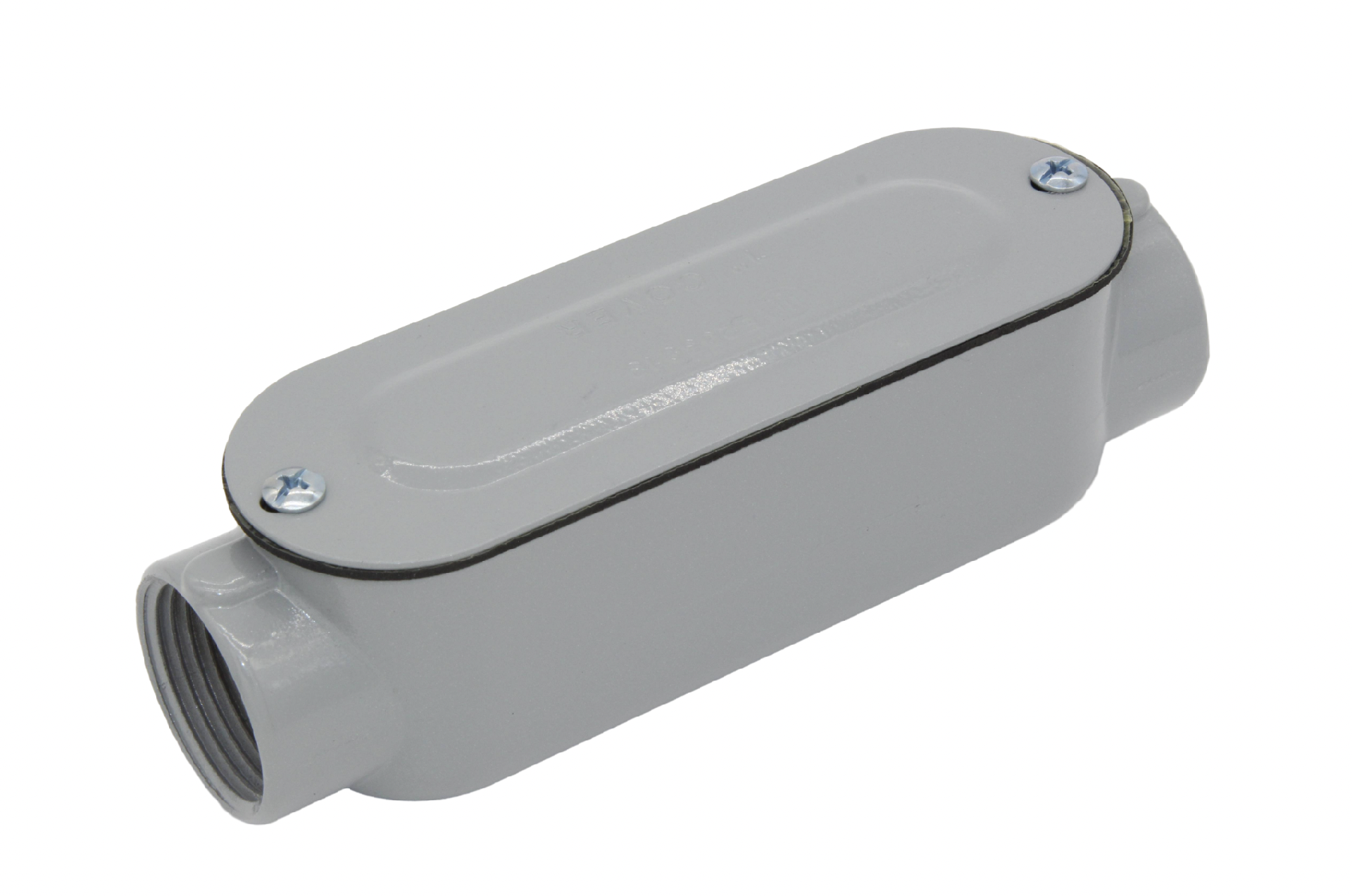

ALEX® EMT/Rigid Conduit Bodies

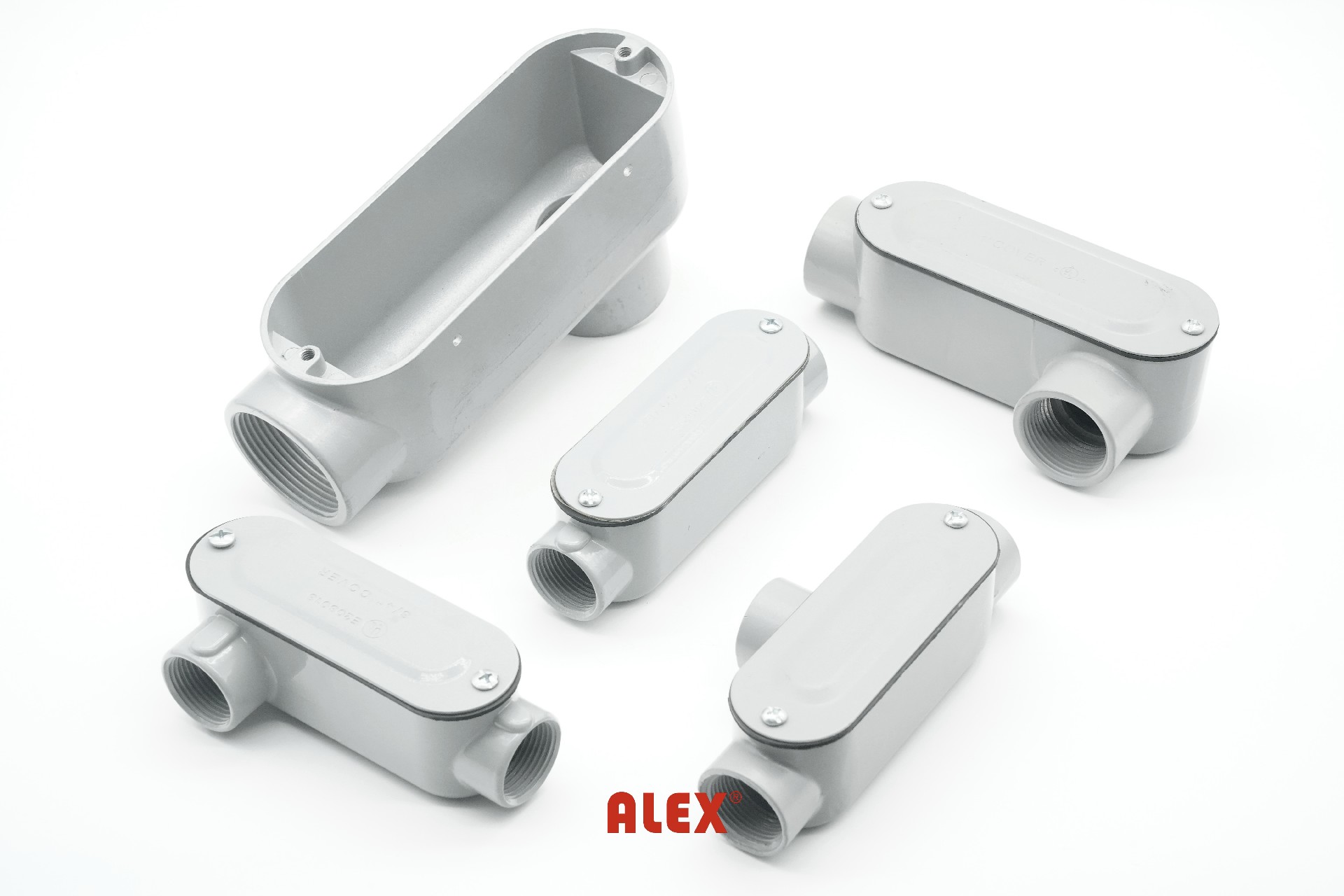

ALEX Conduit bodies has two type, one is set screw type and another type is threaded.

Set Screw Type conduit Bodies are designed for EMT conduit, and it uses a screw to tighten the connection.

Threaded type conduit bodies are designed for IMC/RIGID conduit, and you can just rotate the conduit to tighten the connection.

ALEX® EMT/Rigid Conduit Bodies are designed to provide easy access for pulling, splicing, and maintenance of wires in electrical conduit systems. Uniquely crafted with both set screw and threaded options, these conduit bodies are versatile, making them suitable for use with both EMT and Rigid conduits. This dual functionality ensures seamless integration into a variety of electrical installations, enhancing both flexibility and reliability.

Commitment to Excellence

ALEX® EMT/Rigid Conduit Bodies are engineered to meet the highest standards, ensuring reliable and durable solutions for your electrical projects. We deliver only the best.

Warranty

ALEX® EMT/Rigid Conduit Bodies come with a one-year warranty from the date of purchase, ensuring peace of mind and reliable protection for your electrical conduit systems.


ALEX Conduit body is made from aluminum die cast, and after the basic shape is formed, we will grinding, drilling on the conduit body, and then we will powder coating outside.

Every conduit body is sealed by plastic bag to protect it.

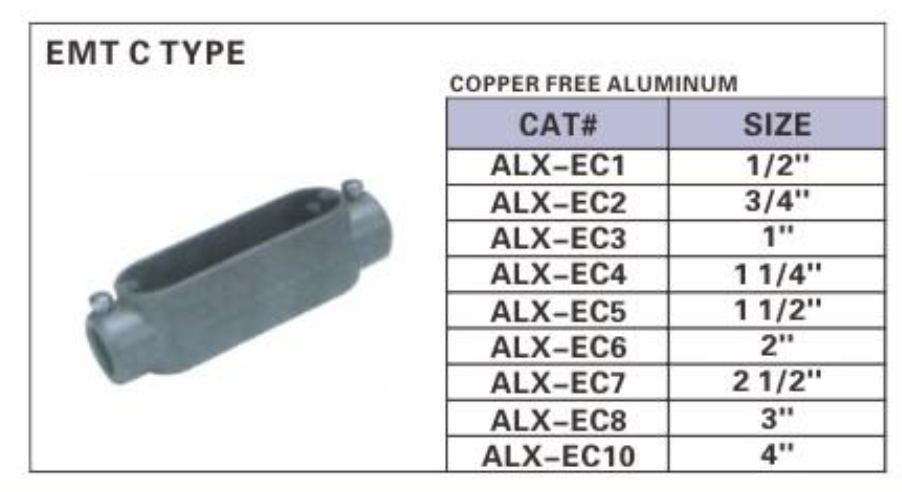

SIZE CHART FOR CONDUIT BODIES EMT C TYPE

CAT#SIZE
ALX-EC11/2"
ALX-EC23/4"
ALX-EC31"
ALX-EC41 1/4"
ALX-EC51 1/2"
ALX-EC62"
ALX-EC72 1/2"
ALX-EC83"
ALX-EC104"
