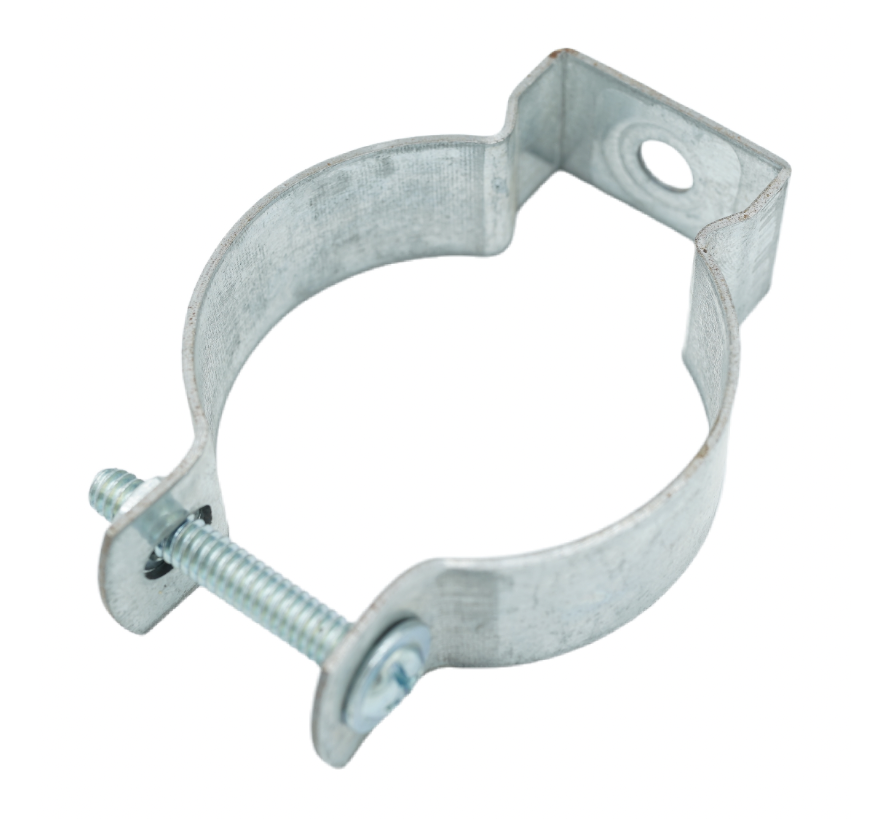

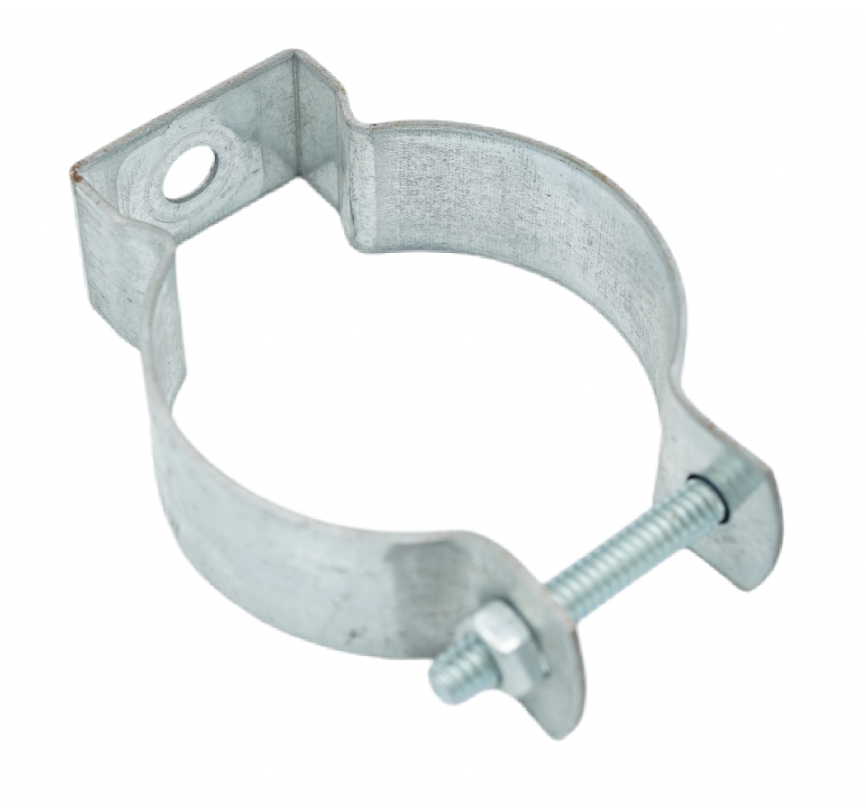

The ALEX® CD Type Conduit Clamp is a specialized heavy-duty fastening solution designed to securely mount Electrical Metallic Tubing (EMT) and rigid pipes to strut channels or structural surfaces.
Distinguished by its robust bolt-locking mechanism and electro-galvanized steel construction, this clamp provides a tighter, more vibration-resistant grip than standard U-clips. It is the professional choice for industrial applications where pipelines must be rigidly fixed to prevent shifting due to mechanical vibration.
Key Features & Benefits
Bolt-Locking System: Features a dedicated steel bolt and nut mechanism that allows for precise tightening, ensuring the conduit cannot slip or rotate.
Corrosion Resistance: Manufactured from high-quality steel with an Electro-Galvanized (Zinc Plated) finish to withstand humidity, dust, and oxidation.
Vibration Proof: The unique "CD" body shape wraps securely around the pipe, maintaining stability even in dynamic environments like automated production lines.
Easy Installation: Single-bolt design simplifies the mounting process, significantly reducing labor time on-site.
Technical Specifications & Size Chart
Reference Code
Metric Size (mm)
Material
Finish
APC-CD20
20 mm
Carbon Steel
Electro-Galvanized
APC-CD25
25 mm
Carbon Steel
Electro-Galvanized
APC-CD32
32 mm
Carbon Steel
Electro-Galvanized
APC-CD40
40 mm
Carbon Steel
Electro-Galvanized
APC-CD50
50 mm
Carbon Steel
Electro-Galvanized
APC-CD63
63 mm
Carbon Steel
Electro-Galvanized
APC-CD75
75 mm
Carbon Steel
Electro-Galvanized
Applications
Industrial Wiring: Securing conduits in factory workshops and mechanical equipment rooms.
Infrastructure: Fixing oil pipes, air tubes, and heavy electrical cables in tunnels or bridges.
Automation: Managing cabling on vibrating automated production lines.
Frequently Asked Questions (FAQ)
Q: What is the advantage of the CD Type over a standard Omega clamp?
A: The CD Type Clamp typically uses a bolt-and-nut locking mechanism which allows for higher torque and a tighter grip compared to standard snap-on or two-hole straps. It is better suited for hanging pipes or applications requiring superior load-bearing capacity.
Q: Is the bolt included?
A: Yes. Each clamp comes pre-assembled with the matching steel bolt and nut, ready for immediate installation.
Q: Is this suitable for outdoor use?
A: The Electro-Galvanized finish offers good corrosion resistance for indoor and semi-protected outdoor environments.2 For extreme outdoor or marine conditions, we recommend requesting Hot-Dip Galvanized options.
Q: Do you offer OEM branding?
A: Yes. We support OEM production. We can customize packaging and labeling to match your brand requirements for distribution.
Q: What is the lead time?
A: Our standard lead time is approximately 4 weeks. We recommend confirming specific delivery schedules with our sales team before placing large orders.
