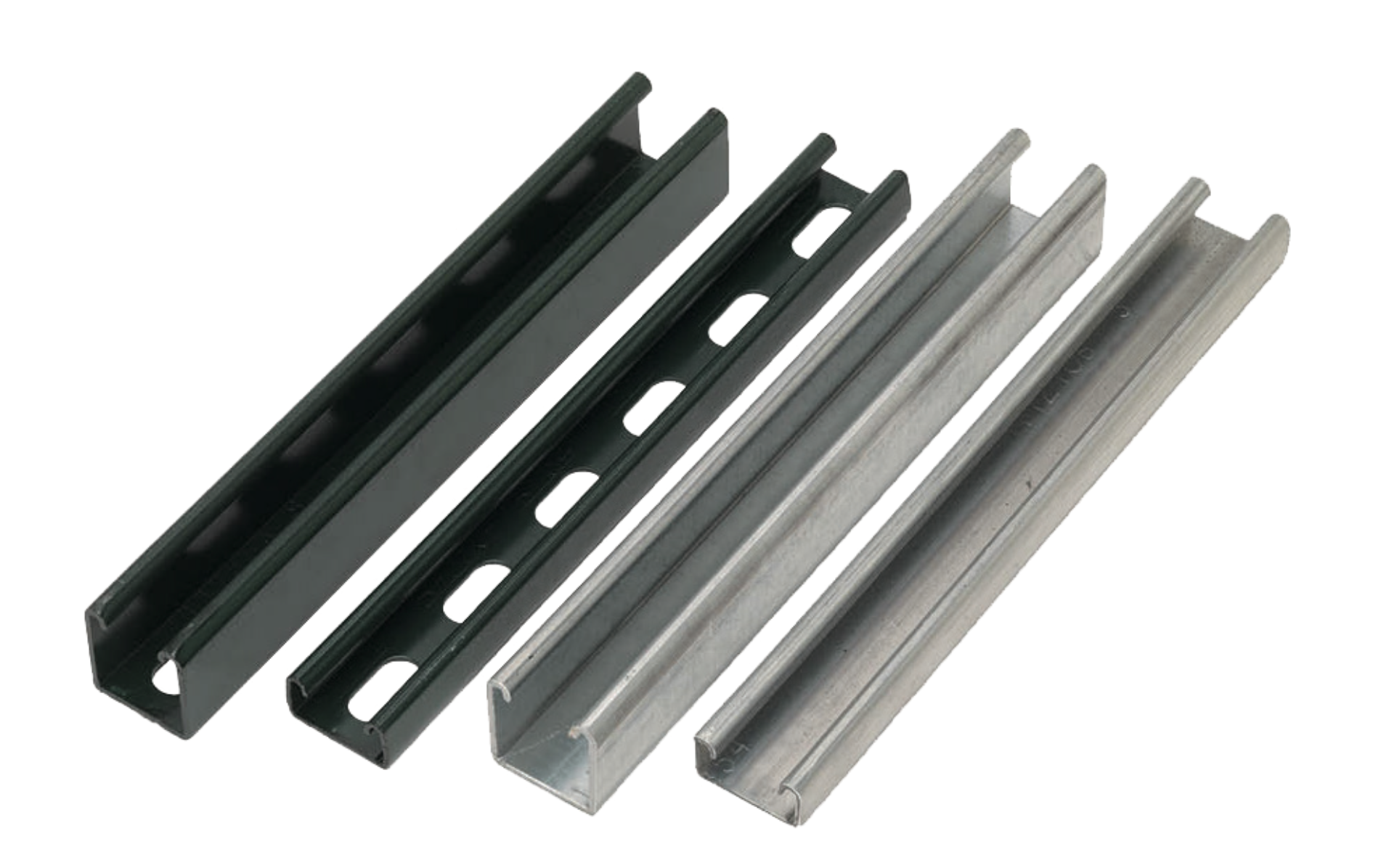

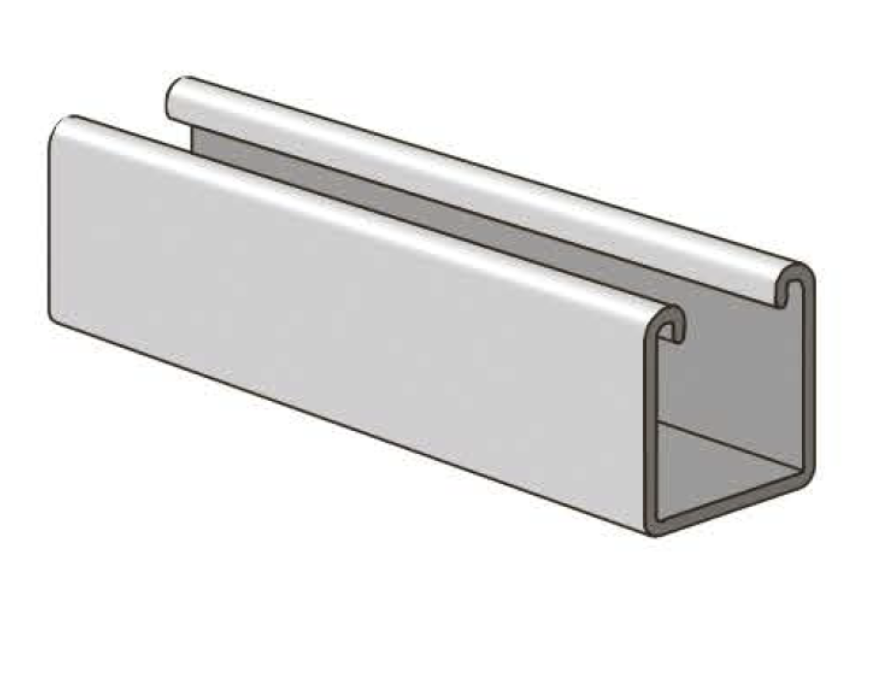

The ALEX® RUC Mounting Rail (also known as Strut Channel or Riel C) is a versatile structural support system designed to organize and support rigid metal pipes, electrical conduits, and cable trays.
Manufactured strictly under ISO 9001 quality standards, this rail serves as the backbone of industrial and commercial wiring installations. It allows for the modular mounting of pipe clamps (like RC or CD clamps) without the need for drilling or welding, providing a flexible and robust framework for electrical infrastructure.
Product Variants & Finishes
We offer this product in two primary material finishes to suit different environmental conditions:
1. Pre-Galvanized (Zinc-Coated)
Code Suffix: G (e.g., APC-1935G)
Description: Manufactured from steel sheets coated with zinc prior to forming.
Ideal For: Indoor applications, commercial buildings, and dry environments.
Appearance: Smooth, shiny finish.
2. Hot-Dip Galvanized (Heavy Duty)
Code Suffix: HG (e.g., APC-1935HG)
Description: The entire steel channel is dipped in molten zinc after fabrication, ensuring thick coating on all edges and holes.
Appearance: Matte, textured gray finish with superior corrosion resistance.
Technical Specifications & Size Chart
Reference Code
Dimensions (mm)
Thickness (mm)
Material Finish
Standard Length
APC-1935G
35 x 19 mm (Riel RC)
1.0 / 1.2 mm
Pre-Galvanized
1m / 3m
APC-1935HG
35 x 19 mm (Riel RC)
1.2 / 1.5 mm
Hot-Dip Galvanized
1m / 3m
Standard
41 x 21 mm (Shallow)
Variable
Pre-Galv / HDG
3 Meters
Standard
41 x 41 mm (Deep)
Variable
Pre-Galv / HDG
3 Meters
(Note: Custom lengths and thicknesses are available upon request for bulk orders.)
Key Features
Modular System: Compatible with standard strut nuts, pipe clamps, and fittings for easy assembly and adjustment.
High Strength: Reinforced profile design withstands heavy loads from multiple conduit runs.
Standard Compliance: Produced in ISO 9001 certified facilities to ensure dimensional accuracy and steel quality.
Installation Efficiency: Eliminates the need for on-site welding; simply cut to length and bolt components together.
Frequently Asked Questions (FAQ)
Q: What is the difference between 41x41 and 41x21 rails?
A: 41x41mm (Deep) is stronger and used for longer spans or heavier loads. 41x21mm (Shallow) is used for direct wall mounting or lighter loads where space is limited. The 35x19mm (Riel RC) is a lighter profile specific to certain markets for cost-effective conduit support.
Q: Can I order lengths shorter or longer than 3 meters?
A: Our standard length is 3 meters to optimize shipping, but we can cut to specific lengths (e.g., 1 meter or 2 meters) or supply longer lengths (up to 6 meters) depending on shipping container limitations.
Q: Is the Riel RC compatible with your RC Strut Clamps?
A: Yes. Our APC-1935 rails are designed to work perfectly with ALEX® RC Strut Clamps (Abrazaderas Riel RC) to provide a secure fit for conduits.
Q: Do you offer OEM branding?
A: Yes. We support OEM production. We can label the rails and customize packaging to match your brand requirements.
Q: What is the lead time?
A: Our standard lead time is approximately 4 weeks. We recommend confirming specific delivery schedules with our sales team before placing large orders.
