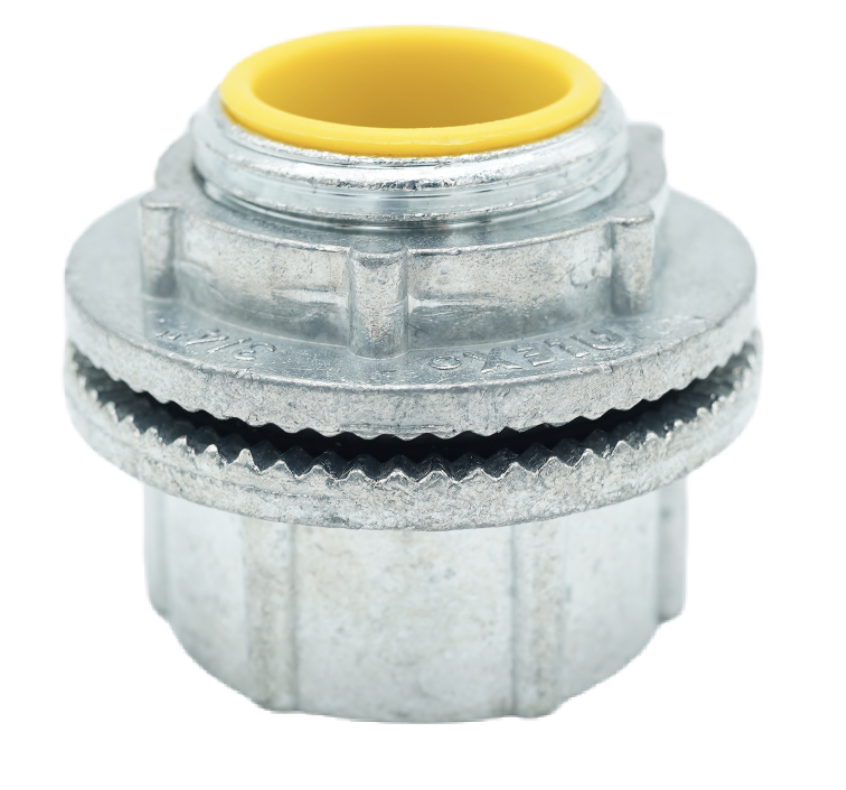

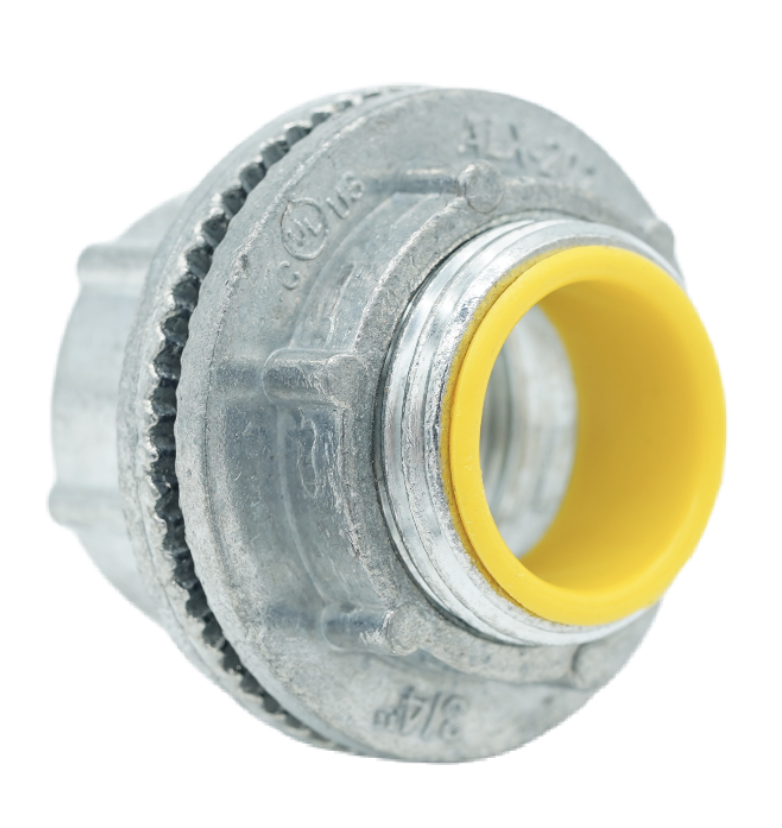

The ALEX® Stright Hub Metric Connector is a heavy-duty fitting designed to create a secure, vibration-proof, and watertight connection between metric rigid conduits and electrical enclosures (distribution boxes or panel boards).
Unlike standard locknuts, these Hubs feature a robust construction that ensures superior mechanical integrity and grounding continuity. They are essential for industrial applications where protecting the wiring system from dust, moisture, and physical stress is critical.
Key Features & Benefits
Secure Box Connection: Provides a solid, flush mount to the enclosure wall, preventing conduit pull-out even under heavy vibration.
Wire Protection: Designed with a smooth, insulated throat (or smooth machined surface) to prevent abrasion of wire insulation during pulling.
Corrosion Resistance: Manufactured from high-grade metallic alloy with a protective finish to withstand industrial environments.
Metric Compatibility: Specifically engineered to fit IEC standard metric knockouts and conduits.

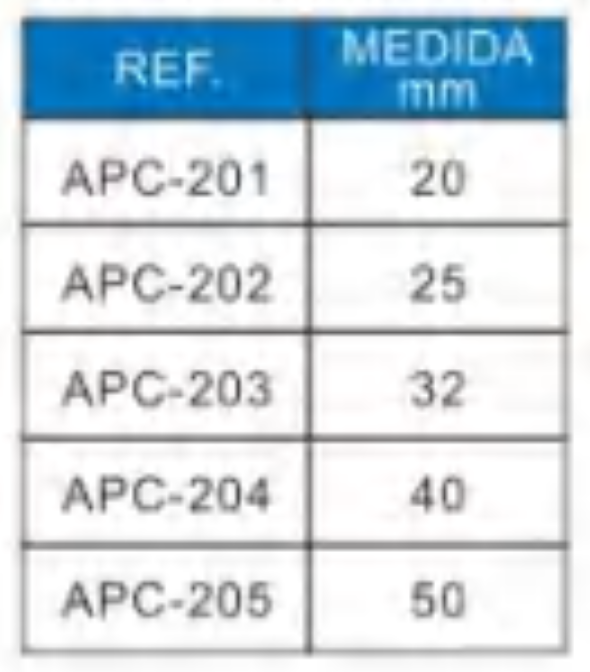

Technical Specifications & Size Chart
Reference Code
Metric Size (mm)
Application
APC-201
20 mm
Hub for 20mm Conduit/Knockout
APC-202
25 mm
Hub for 25mm Conduit/Knockout
APC-203
32 mm
Hub for 32mm Conduit/Knockout
APC-204
40 mm
Hub for 40mm Conduit/Knockout
APC-205
50 mm
Hub for 50mm Conduit/Knockout
Quality Assurance
Commitment to Excellence: Manufactured in compliance with IEC 61386 and international safety standards to ensure long-lasting performance in demanding electrical infrastructures.
Warranty: We offer a one-year warranty from the date of purchase, covering manufacturing defects and ensuring the reliability of your electrical systems.
Frequently Asked Questions (FAQ)
Q: What is the difference between a "Hub" and a standard connector?
A: A Hub is designed for higher-performance connections, typically offering better sealing (watertightness) and stronger mechanical load bearing compared to standard locknut connectors. It is preferred for connecting conduits to main distribution panels or outdoor boxes.
Q: Is this product suitable for outdoor use?
A: Yes. The ALEX® Hub is designed with corrosion-resistant materials, making it suitable for both indoor industrial plants and outdoor environments where exposure to elements is a concern.
Q: Do you offer OEM branding?
A: Yes. We provide OEM services. We can customize the packaging and even stamp your brand logo on the product (subject to MOQ), helping you build your brand identity in the market.
Q: What is the lead time?
A: Our standard lead time is approximately 4 weeks. We recommend confirming specific delivery dates with our sales team, especially for large project orders.
Q: Can I get a sample for quality check?
A: Yes. ALEX supplies physical samples and technical data sheets upon request to ensure the product meets your project specifications.
