ALEX® Combination Coupling: EMT to Flexible Metal Conduit
(Spanish Reference: CONECTOR FLEXIBLE METÁLICO A TUBERÍA EMT)
Product Definition

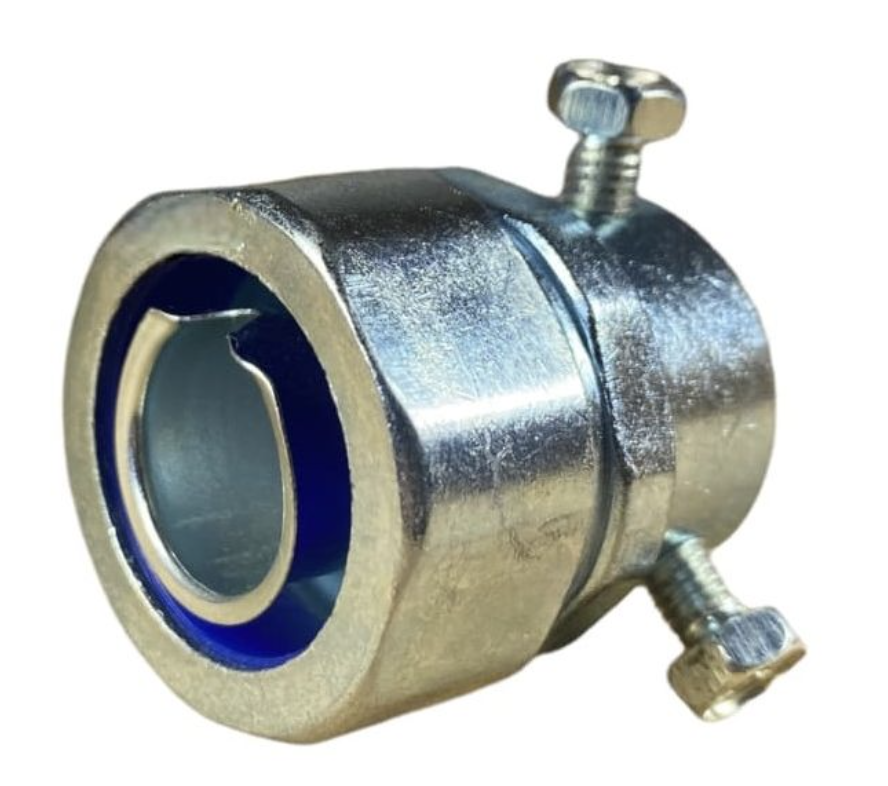

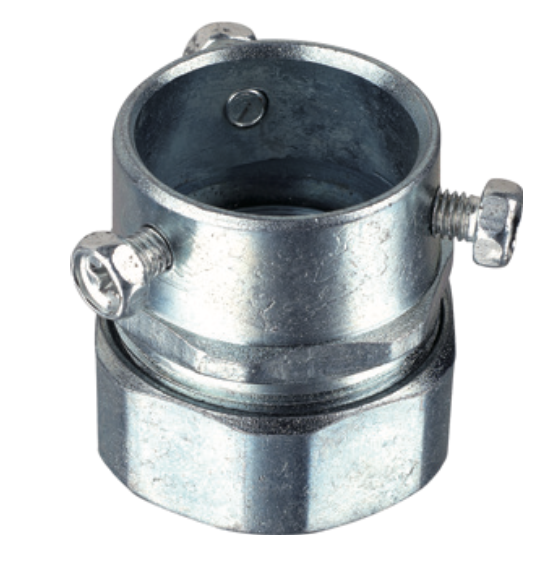

The ALEX® Combination Coupling is a specialized transition fitting designed to securely join Electrical Metallic Tubing (EMT) to Flexible Metal Conduit (FMC).
Constructed from high-strength zinc-plated steel, this coupling ensures a safe, vibration-resistant mechanical bond and maintains electrical grounding continuity between the rigid and flexible raceway systems.It is the standard solution for transitioning from main conduit runs to flexible drops for motors, lights, or equipment in dry location environments.
Key Features & Benefits
Seamless Transition: Engineered to connect two different types of conduits (Rigid EMT to Flexible Steel) without the need for a junction box.
Corrosion Resistance: The zinc-plated steel construction offers durable protection against rust and corrosion in commercial and light industrial settings.
Wire Protection: Features a precision-machined smooth interior to prevent wire abrasion or insulation damage during cable pulling.
Secure Installation: Utilizes a compression or screw-based mechanism to grip both the EMT and the Flexible conduit firmly, preventing pull-out.
Technical Specifications & Size Chart
Metric Size (mm)
Material
Application Environment
20 mm
Zinc-Plated Steel
Dry Locations
25 mm
Zinc-Plated Steel
Dry Locations
32 mm
Zinc-Plated Steel
Dry Locations
40 mm
Zinc-Plated Steel
Dry Locations
50 mm
Zinc-Plated Steel
Dry Locations
63 mm
Zinc-Plated Steel
Dry Locations
75 mm
Zinc-Plated Steel
Dry Locations
90 mm
Zinc-Plated Steel
Dry Locations
110 mm
Zinc-Plated Steel
Dry Locations
Quality Assurance
Commitment to Excellence: ALEX® fittings are manufactured to meet ANSI C80.3 and IEC 61386 standards, ensuring consistent quality and safety.
Warranty: We offer a one-year warranty from the date of purchase, guaranteeing the mechanical integrity and performance of the coupling.
Frequently Asked Questions (FAQ)
Q: What is the main use of this connector?
A: It is used when you need to switch from a rigid pipe (EMT) to a flexible pipe (FMC) in a single run. This is common when routing wiring from a ceiling or wall (Rigid) down to a vibrating machine or motor (Flexible).
Q: Is this connector liquid-tight?
A: No. This specific Zinc-Plated Steel connector is designed for Flexible Metal Conduit (FMC) in dry locations. For wet environments, please use our Liquid Tight Connectors with sealing gaskets.
Q: Does it ensure grounding continuity?
A: Yes. The high-strength steel construction and secure mechanical grip provide a stable path for ground fault currents, complying with electrical bonding codes.
Q: Do you offer OEM branding?
A: Yes. We support OEM production, private labeling, and custom packaging for distributors and project suppliers.
Q: What is the lead time?
A: Our standard lead time is approximately 4 weeks. We recommend confirming specific delivery schedules with our sales team before placing large orders.
