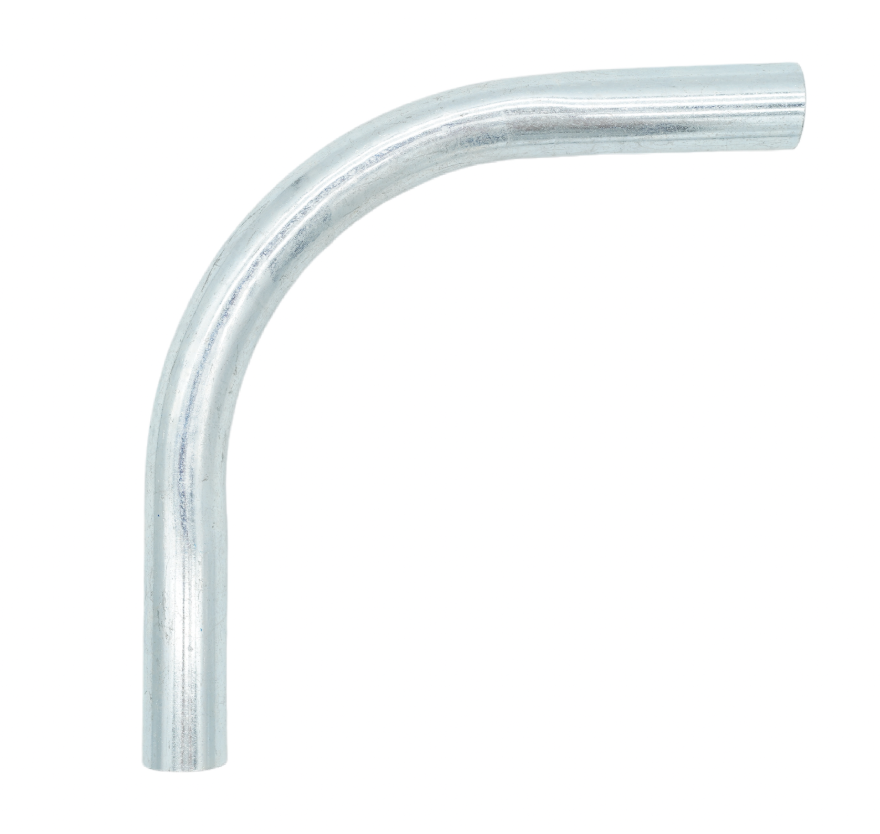

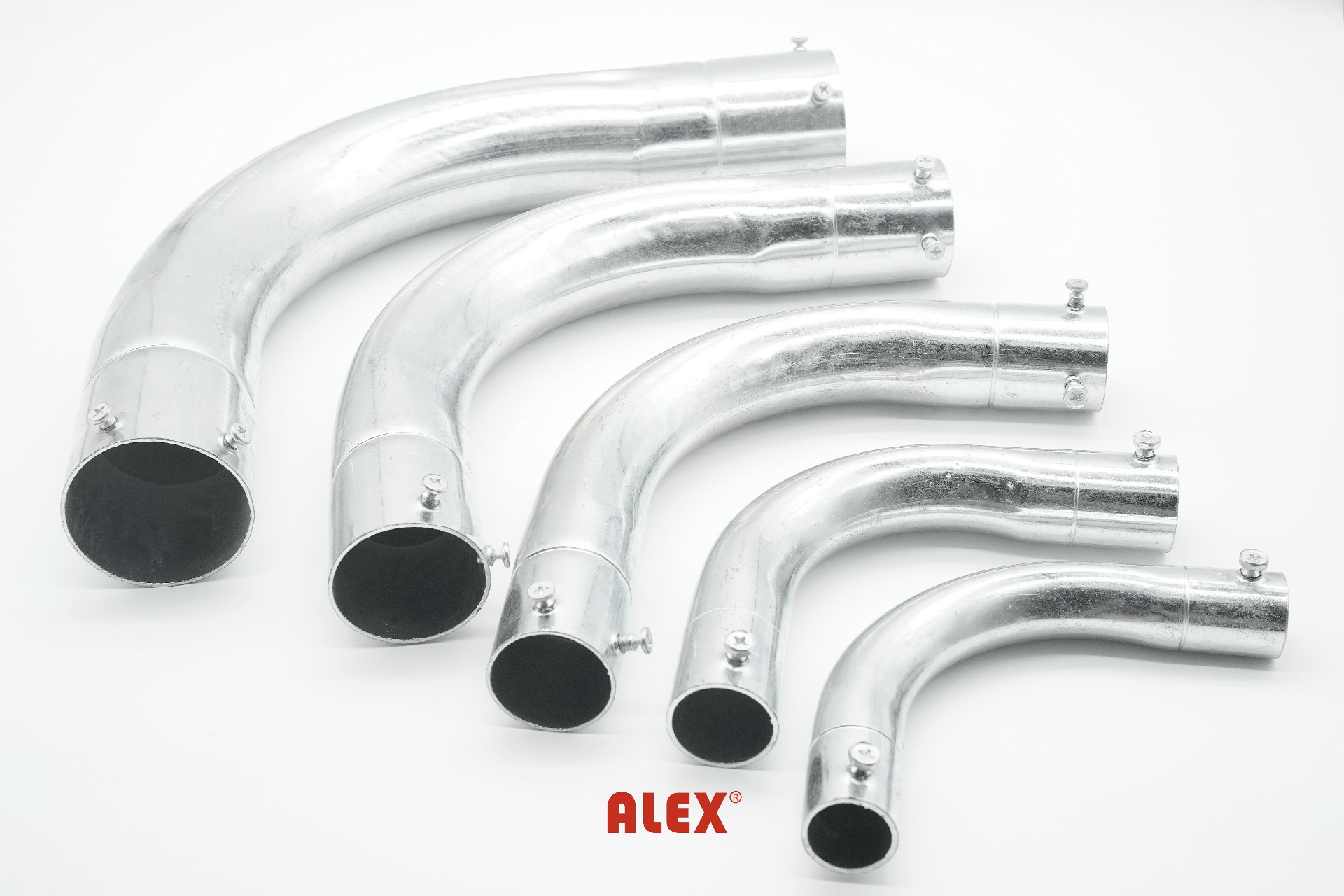

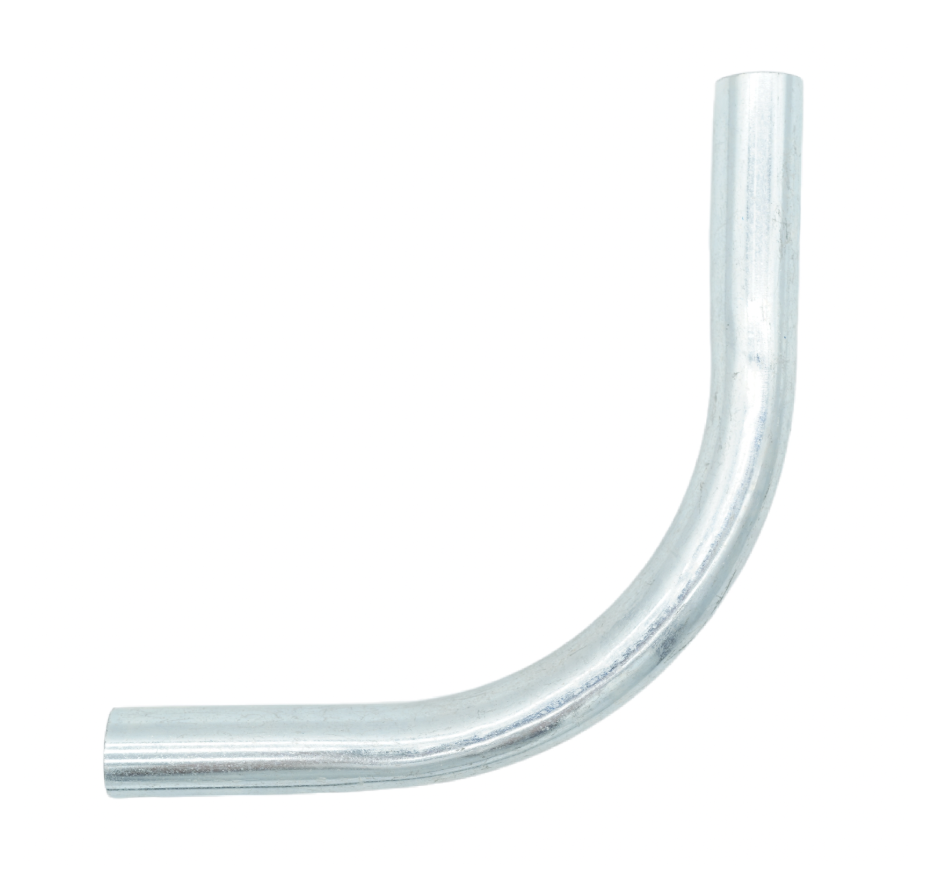

The ALEX® EMT Metric Elbow is a factory-bent 90-degree conduit section designed to facilitate smooth directional changes in IEC standard electrical installations. Unlike field-bent pipes, this precision-manufactured elbow ensures a uniform internal radius, eliminating kinks and minimizing friction during wire pulling.
Compatible with metric EMT conduits, it provides a secure and professional solution for routing wiring around corners in commercial and industrial environments.
Key Features & Benefits
Precision 90° Bend: Ensures consistent angles for professional-looking conduit runs without the risk of damaging the pipe wall.
Wire Protection: Smooth interior finish prevents snagging or abrasion of cable insulation during installation.
Corrosion Resistance: Manufactured from high-grade steel with a protective coating to resist impact and oxidation.
Metric Compatibility: Designed specifically to fit IEC standard EMT conduits (20mm - 50mm).

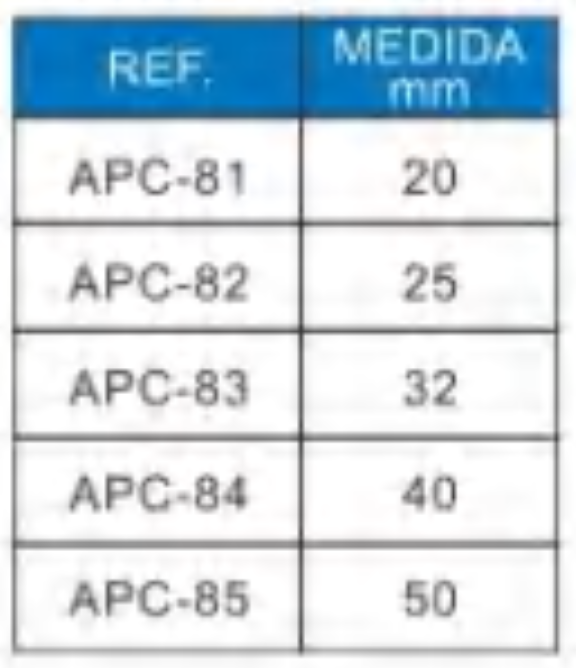

Technical Specifications & Size Chart
Reference Code
Metric Size (mm)
Bend Angle
APC-81
20 mm
90°
APC-82
25 mm
90°
APC-83
32 mm
90°
APC-84
40 mm
90°
APC-85
50 mm
90°
Quality Assurance
Commitment to Excellence: Manufactured strictly according to international electrical standards to guarantee mechanical integrity and safety.
Warranty: We offer a one-year warranty from the date of purchase, ensuring reliability and protection for your electrical infrastructure.
Frequently Asked Questions (FAQ)
Q: Is this elbow threaded?
A: No. This is an EMT Elbow (Thin-wall), which typically comes with plain ends. It is designed to be connected to straight conduit pipes using EMT Couplings (Set-screw or Compression type). For threaded elbows, please refer to our Rigid Conduit (RMC) fittings.
Q: Why use a factory elbow instead of bending the pipe on-site?
A: While smaller EMT pipes can be bent on-site, using factory elbows guarantees a perfect 90-degree radius without flattening the tube. This ensures easier wire pulling and a more consistent, professional appearance across the entire project.
Q: Do you offer OEM branding?
A: Yes. We support OEM production, including private labeling and custom packaging, to help distributors build their own brand presence in the market.
Q: What is the lead time for orders?
A: Our standard lead time is approximately 4 weeks.2 We recommend confirming specific schedules with our sales team before placing large orders.
Q: Can I get technical data sheets?
A: Yes. ALEX supplies full technical specifications and compliance documents upon request.
