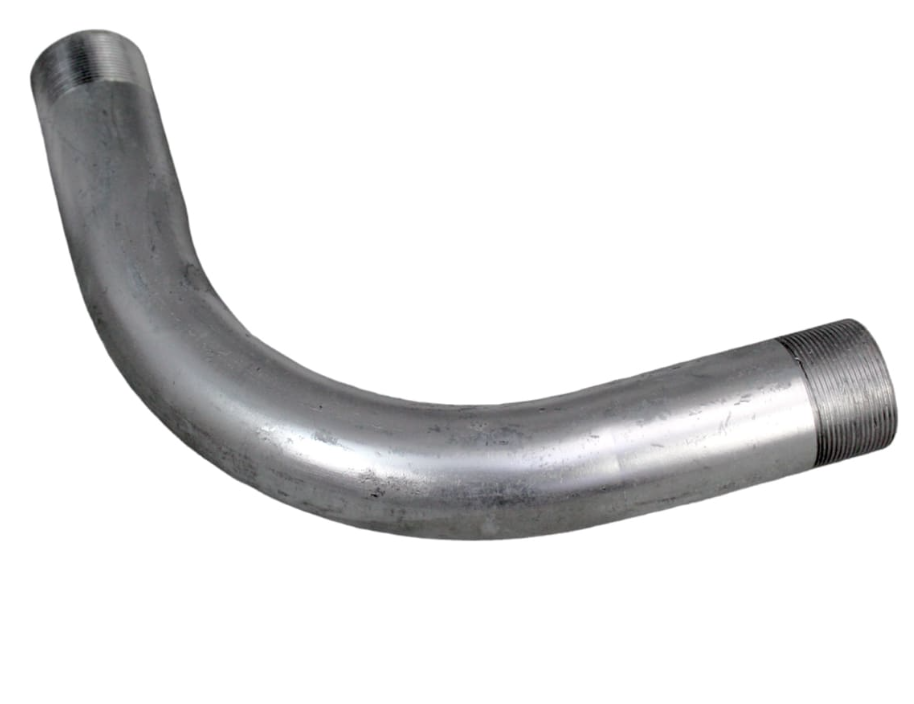

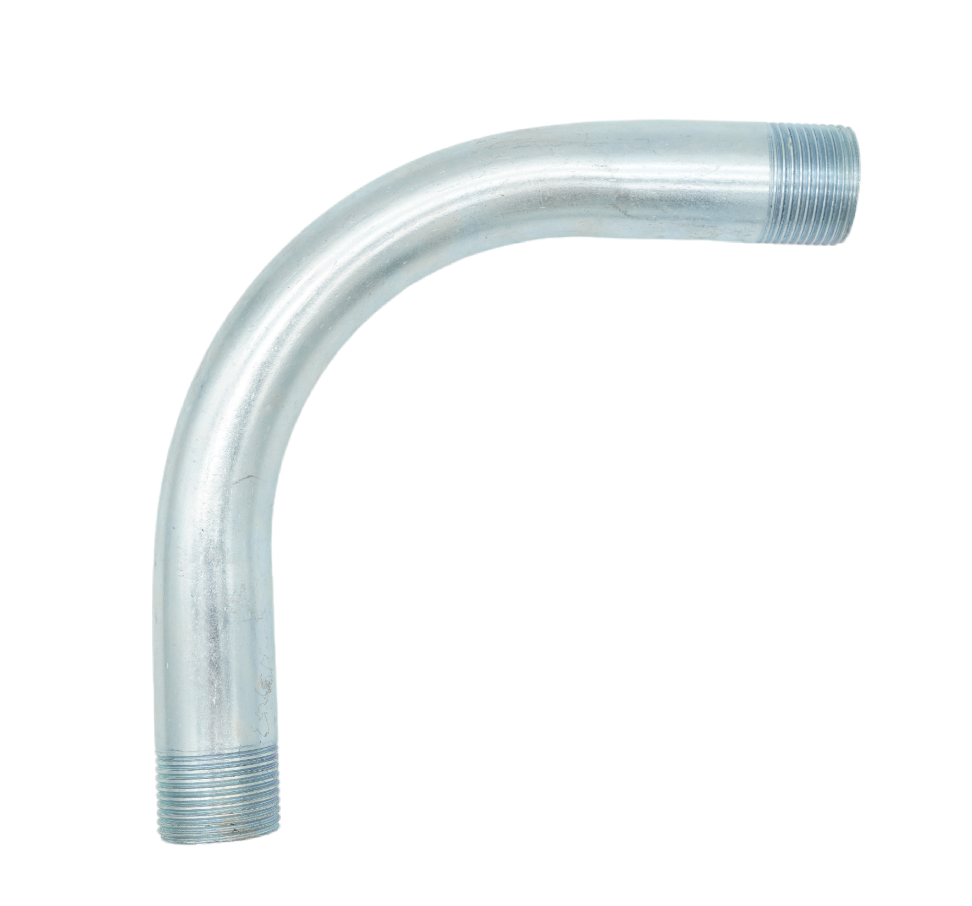

The ALEX® Galvanized Threaded Elbow is a heavy-duty steel fitting designed to facilitate precise 90-degree directional changes in electrical conduit systems. Manufactured from high-grade steel with a durable galvanized finish, it ensures exceptional resistance to corrosion and physical impact.
Featuring precision-threaded ends, this elbow allows for a rapid, secure, and electrically continuous connection with rigid conduits (RMC/IMC), making it the standard choice for industrial, commercial, and infrastructure projects requiring high-stability wiring protection.
Key Features & Benefits
90-Degree Precision: Factory-bent to ensure a smooth internal radius, preventing wire damage during pulling.
Threaded Connection: Pre-threaded ends ensure a solid, vibration-resistant joint with couplers and conduit pipes.
Corrosion Protection: Galvanized coating provides long-lasting defense against rust in humid or outdoor environments.
High Durability: Engineered to withstand mechanical stress in harsh industrial settings.

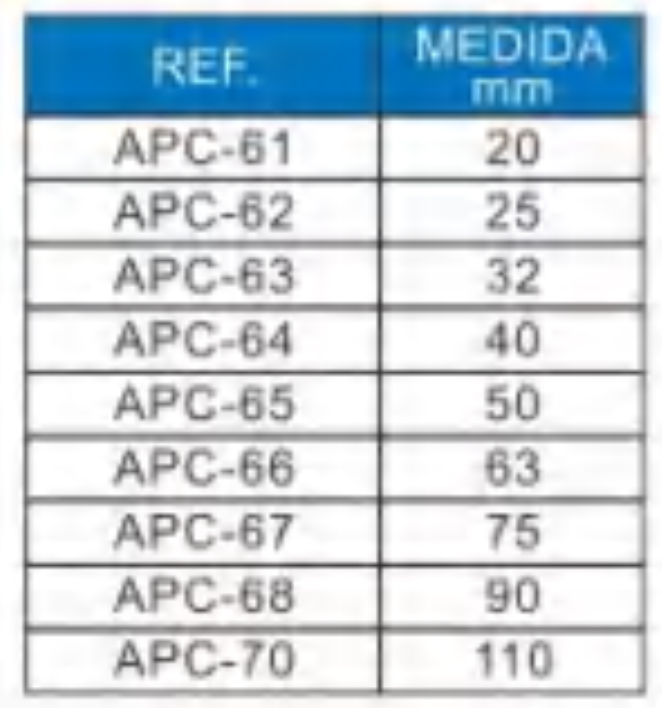

Technical Specifications & Size Chart
Reference Code
Metric Size (mm)
Description
APC-61
20 mm
90° Threaded Elbow
APC-62
25 mm
90° Threaded Elbow
APC-63
32 mm
90° Threaded Elbow
APC-64
40 mm
90° Threaded Elbow
APC-65
50 mm
90° Threaded Elbow
APC-66
63 mm
90° Threaded Elbow
APC-67
75 mm
90° Threaded Elbow
APC-68
90 mm
90° Threaded Elbow
APC-70
110 mm
90° Threaded Elbow
Quality Assurance
Compliance: Manufactured according to international electrical standards (IEC/ANSI compatible) to ensure reliable performance.
Warranty: All ALEX® elbows are backed by a one-year warranty from the date of purchase, guaranteeing structural integrity and manufacturing quality.
Frequently Asked Questions (FAQ)
Q: What is the main application of this elbow?
A: It is used to change the direction of a conduit run by 90 degrees. It is essential for routing wiring around corners, over obstacles, or transitioning from walls to ceilings in rigid piping systems.
Q: Is this elbow compatible with standard rigid conduits?
A: Yes. It is designed to fit standard metric threaded rigid conduits. The threaded ends ensure a tight seal and ground continuity when used with matching threaded couplings.
Q: Can I use this outdoors?
A: Yes. The galvanized finish offers excellent protection against oxidation, making it suitable for both indoor industrial use and outdoor environments.
Q: Do you offer OEM branding for this product?
A: Yes. We provide OEM services, including custom packaging and labeling, to support distributors and project suppliers.
Q: What is the lead time for bulk orders?
A: Our standard lead time is approximately 4 weeks, depending on the order volume and season. We recommend confirming the schedule with our team prior to ordering.
